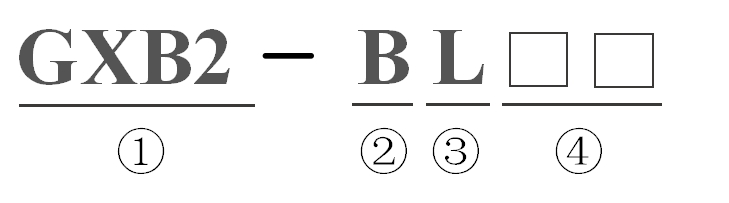

① Push Button Code

② Metal Series

③ Mechanical Form :

             L —- Extended Push Button

④ Code Of The Head :

            81 —- Double Flush Button (No Marks)  ;

            82 —- Double Flush Button (With Marks)  ;

            83 —- Extended/Flush Button (No Marks)  ;

            84 —- Extended/Flush Button (With Marks)

WORKING ENVIRONMENT

Working Environment Temperature : -25°C ~ +70°C

Storage Temperature : -40°C ~ +70°C

Class Of Pollution : 3

Protection Grade : IP40/IP65(with waterproof cover)

Limit Height : ≤2000M

Standard : EN 60947-1,GB14048.5

MAIN TECHNICAL DATA

Rated Insulation Voltage : 600V

Rated Thermal Current : 10A

Switch Rating:  AC-15   Ue : 380V/250V, Ie=4.5A

                            DC-13   Ue : 220V/110V, Ie=0.6A

Contact Resistance : ≤50 mA

Recommended Torque : 0.9 Nm

Mechanical Life Of Double Push Button: ≥300X10⁴ times

Electrical Life : ≥30X10⁴ times

Limit Voltage (lamp) : 0.8Ue≤U≤1.15Ue
